Metal flow passage components of slurry pump

/Pump casing_Slurry pump volute_Slurry pump volute manufacturer

Pump casing_Slurry pump volute_Slurry pump volute manufacturer

Pump series: AH, HH, L, M, SP, G/GH, AF

Pump materials: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

Inquire now

Product Detail

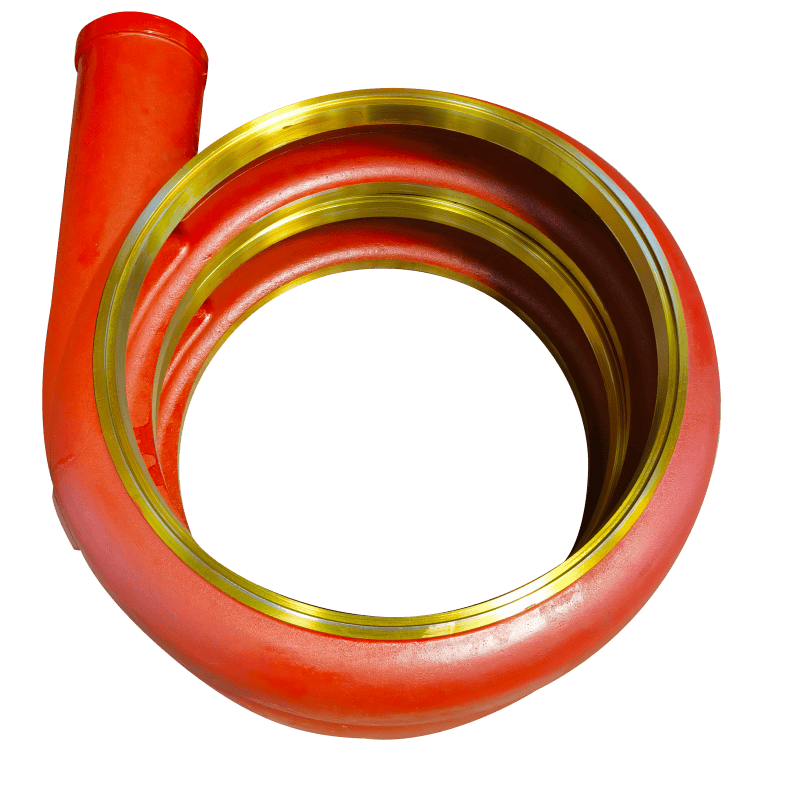

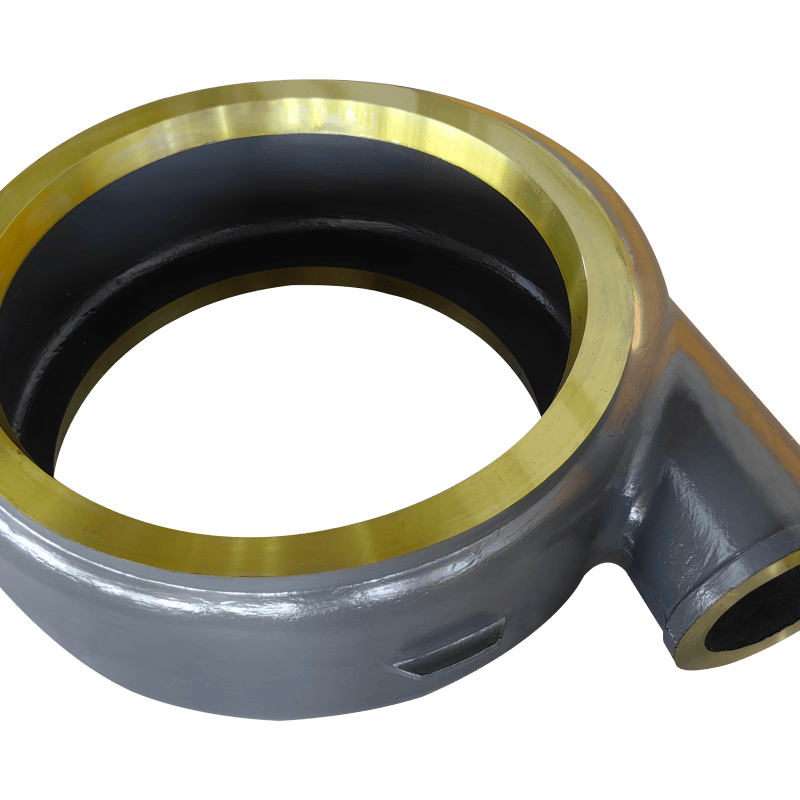

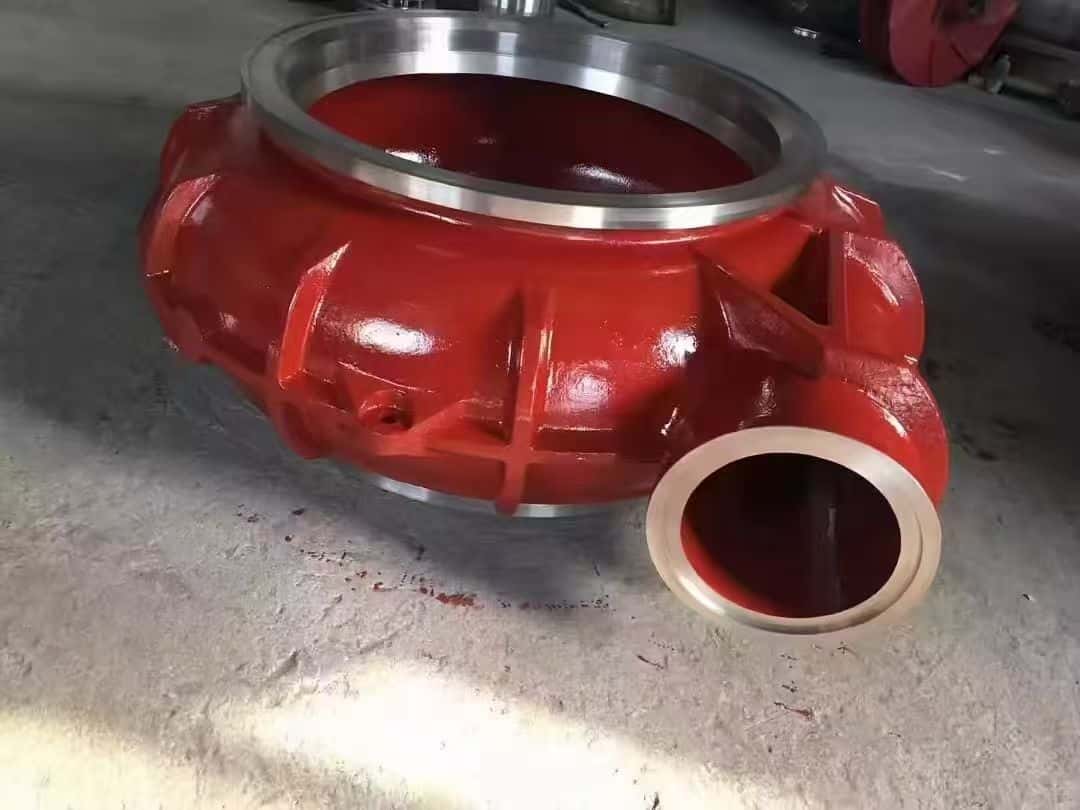

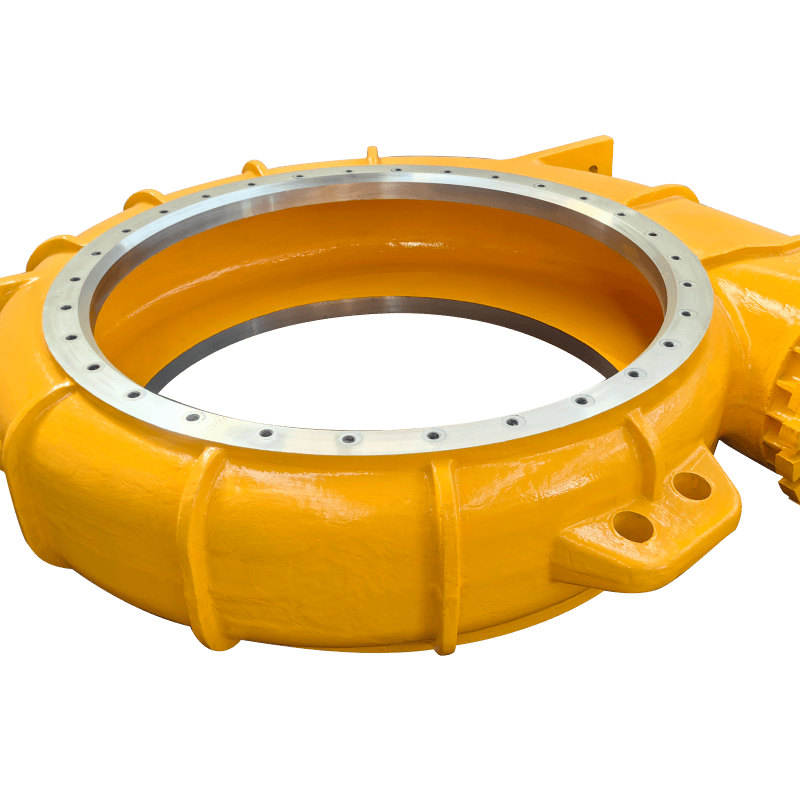

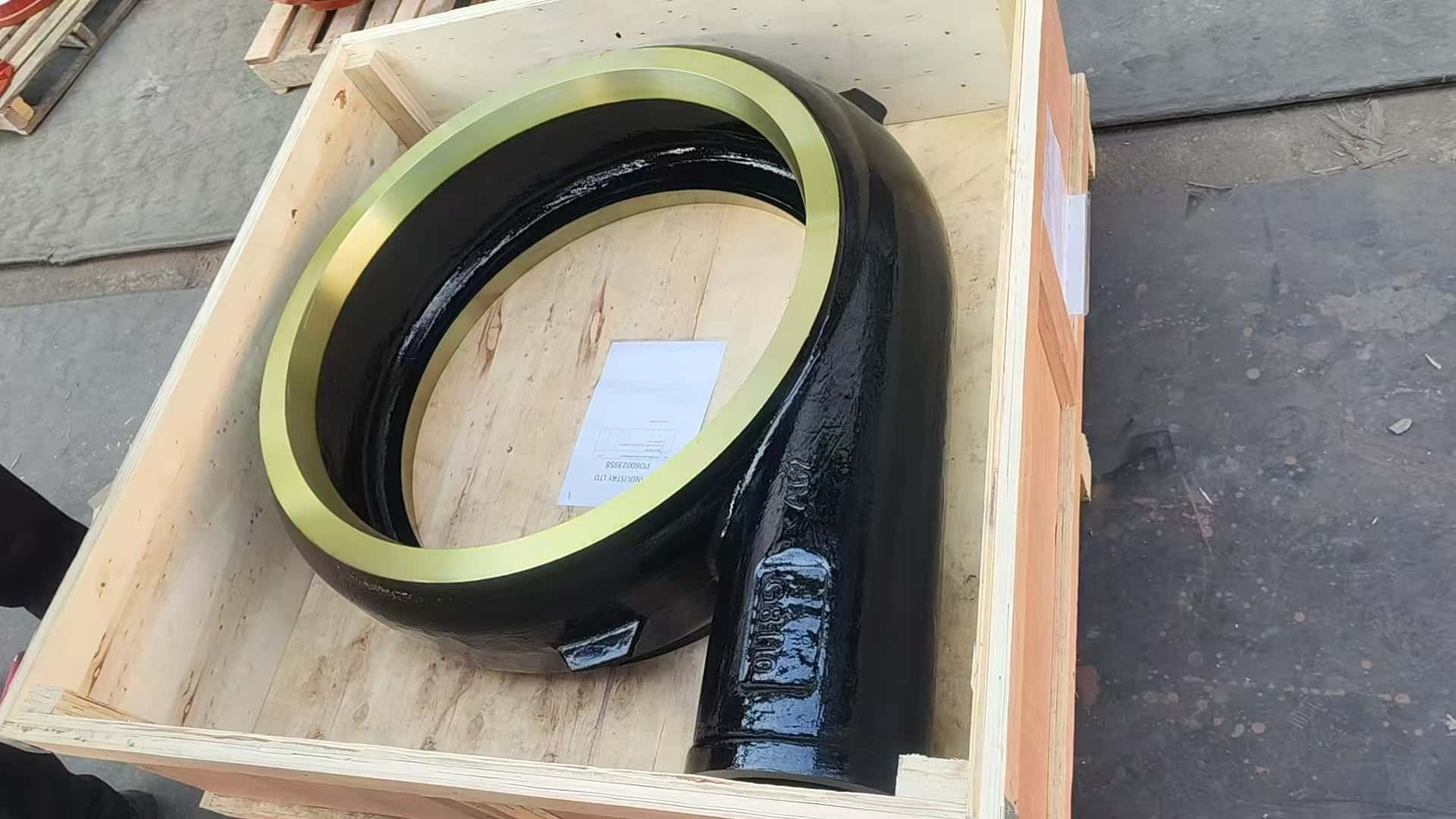

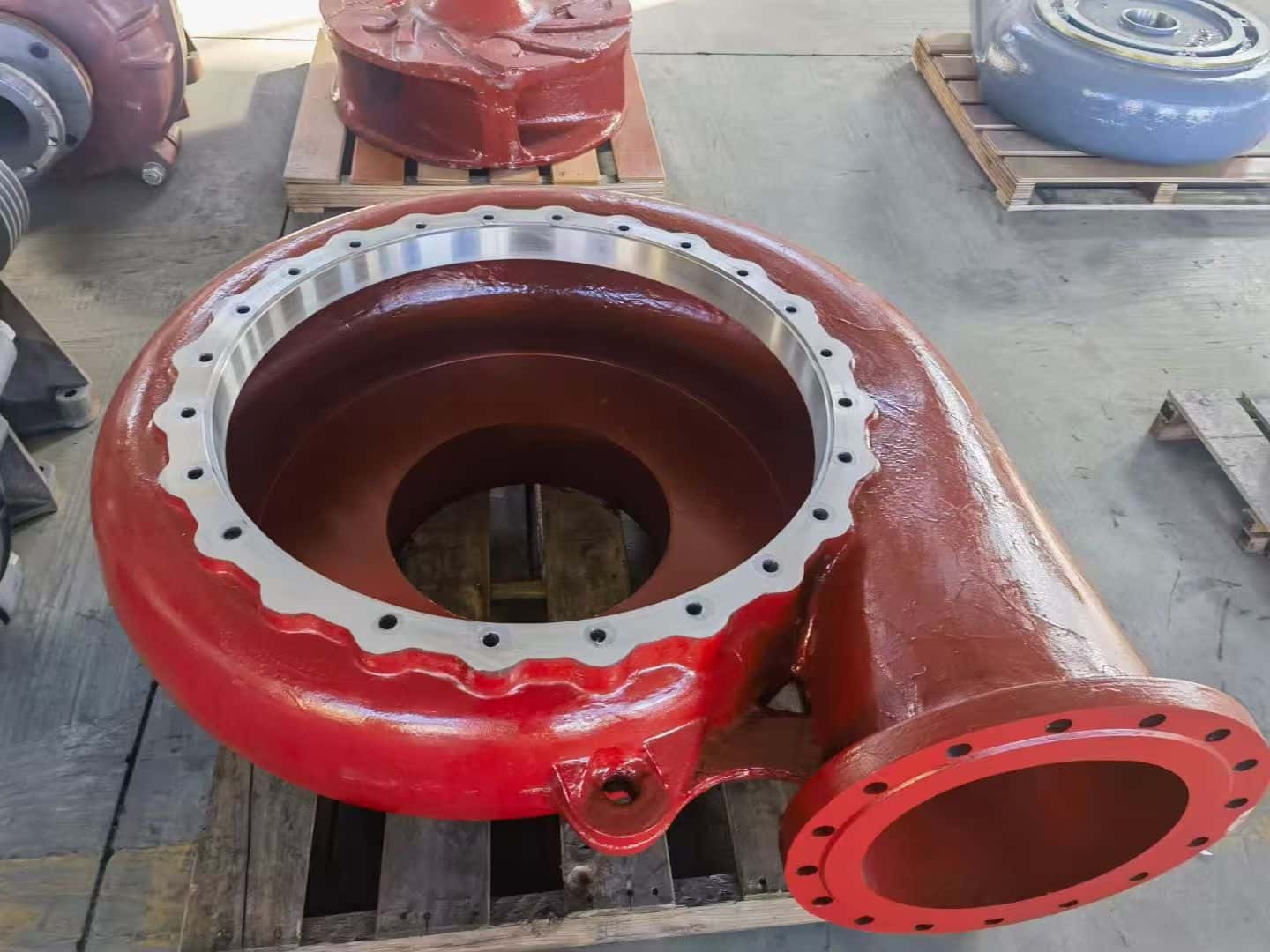

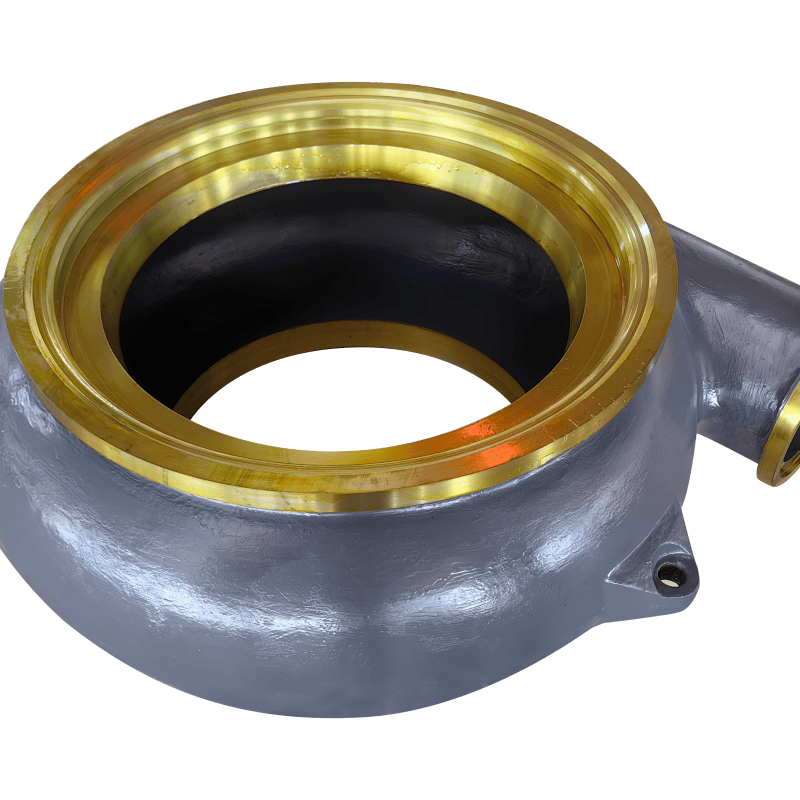

The shroud, also known as the volute, is an important component of the flow passage in slurry pumps. Common materials used for the shroud include high chromium alloy A05, wear-resistant and corrosion-resistant material A49, or rubber material R55. The shroud is a vulnerable part and is installed in conjunction with the front guard plate, impeller, rear guard plate, and guard plate seal gasket. Common foreign codes end with 110.

Volute/sheath part code	AH Slurry Pump	Volute/sheath material
B1110	1.5/1B-AH	A05,A49,R55,U01
B15110	2/1.5B-AH	A05,A49,R55,U01
C2110	3/2C-AH	A05,A49,R55,U01
D3110	4/3C-AH, 4/3D-AH	A05,A49,R55,U01
E4110	6/4D-AH, 6/4E-AH	A05,A49,R55,U01
F6110	8/6E-AH, 8/6F-AH	A05,A49,R55,U01
G8110	10/8F-AH, 10/8ST-AH	A05,A49,R55,U01
G10110	12/10F-AH, 12/10ST-AH	A05,A49,R55,U01
G12110	14/12F-AH, 14/12ST-AH	A05,A49,R55,U01
H14110	16/14TU-AH	A05,A49,R55,U01
Volute Liner Code	HH Slurry Pump	Volute Liner Materials
CH1110	1.5/1C-HH	A05，A49
DH2110	3/2D-HH	A05，A49
EH3110	4/3E-HH	A05，A49
FH4110	6/4F-HH	A05，A49
FH4110	6-H	A05，A49
Volute Liner Code	M Slurry Pump	Volute Liner Materials
F8110	10/8E-M, 10/8F-M,10/8R-M	A05,A49,R55,U01
F10110	12/10E-M, 12/10F-M	A05,A49,R55,U01
Volute Liner Code	L Slurry Pump	Volute Liner Materials
AL2110	20A-L	A05,R55
BL5110	50B-L	A05,R55
CL75110	75C-L	A05,R55
DL10110	100D-L	A05,R55
EL15110	150E-L	A05,R55
SL20110	200E-L	A05,R55
SL30110	300S-L	A05,R55
SL35110	350S-L	A05,R55
TL40110	400ST-L	A05,R55
TL45110	450ST-L	A05,R55
UL55110	550TU-L	A05,R55
