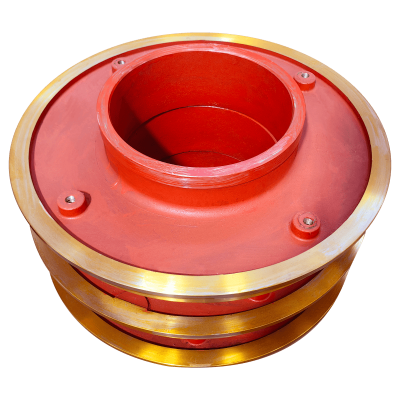

Slurry pump front guard plate_Slurry pump front guard plate manufacturer
Slurry pump front guard plate_Slurry pump front guard plate manufacturer

Slurry pump front guard plate_Slurry pump front guard plate manufacturer

The accessories of the slurry pump have unique part codes. The code for the front guard plate is 083, and the material of the front guard plate is high-chromium alloy or natural rubber. It is installed in front of the sheath and is the outlet position of the pump chamber liquid.

  • Product origin:

    China

  • Min order:

    9

  • Lead Time:

    7days after payment
Inquire now

The accessories of the slurry pump have unique part codes. The code for the front guard plate is 083, and it is made of high-chromium alloy or natural rubber. It is installed in front of the sheath and serves as the outlet position for the pump chamber liquid..

Throat Bush Code

AH Slurry Pump

Slurry Pump Materials

E4083

6/4D-AH, 6/4E-AH

    A05,A49,A07

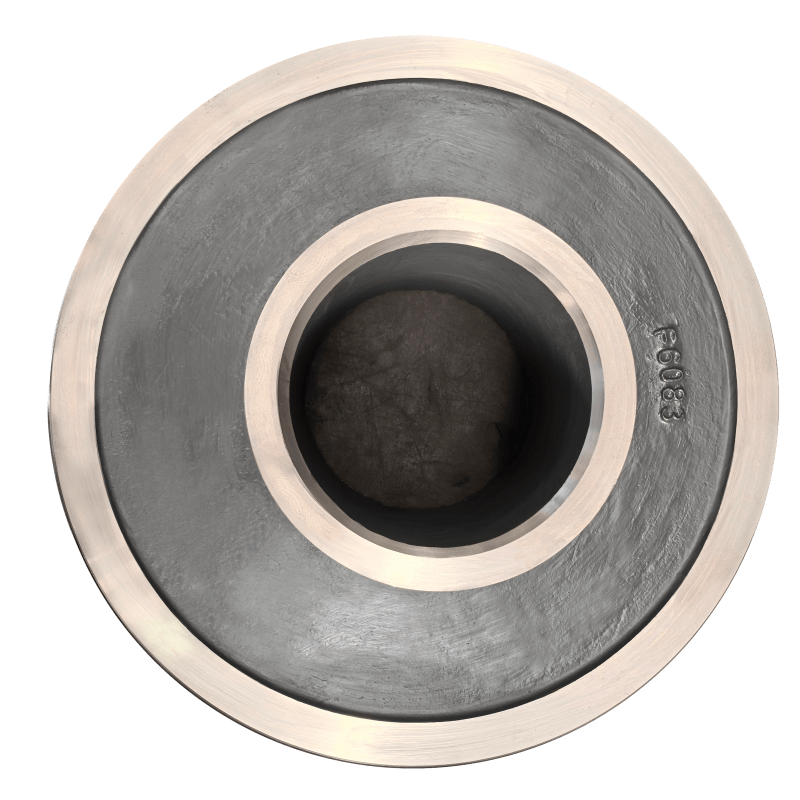

F6083

8/6E-AH, 8/6F-AH

 A05,A49,A07

G8083

10/8F-AH, 10/8ST-AH

 A05,A49,A07

G10083

12/10ST-AH

 A05,A49,A07

G12083

14/12ST-AH

 A05,A49,A07

H14083

16/14TU-AH

 A05,A49,A07

Throat Bush Code

HH Slurry Pump

Slurry Pump Materials

DH2083

3/2D-HH

 A05,A49,A07

DH3083

4/3E-HH

 A05,A49,A07

FH4083

6/4F-HH

 A05,A49,A07

Throat Bush Code

G(H) Gravel Pump

Gravel Pump Materials

GG1412013-1

12/10G-G

 A05,A49,A07

GGH10013

12/10G-GH

 A05,A49,A07

FGH8013

10/8S-GH

 A05,A49,A07

HG14130M

16/14TU-GH

 A05,A49,A07
