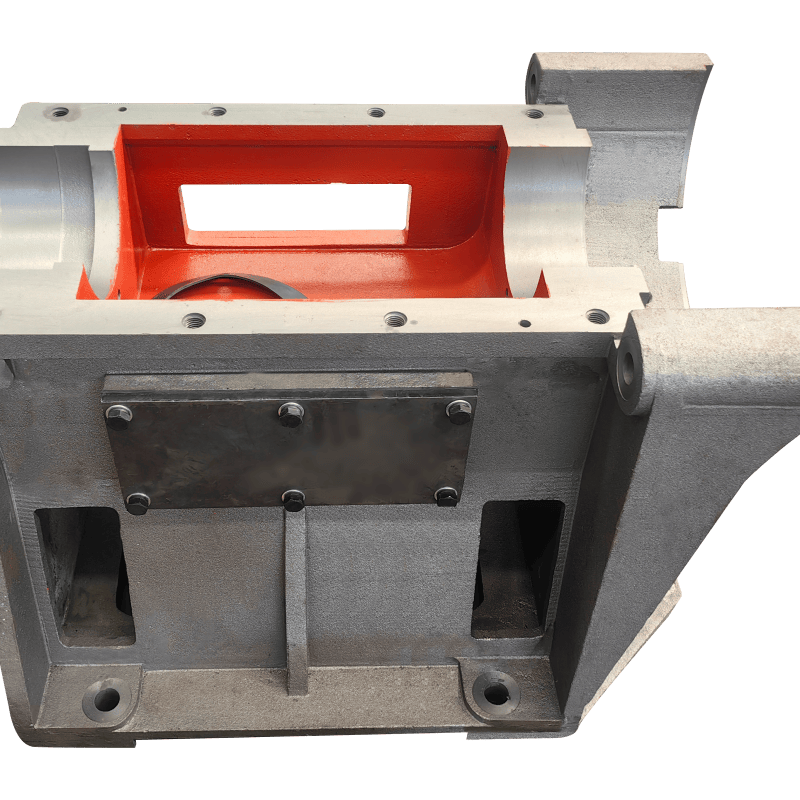

Slurry pump bracket_pump industry slurry pump bracket_slurry pump parts manufacturer

Material: HT250, QT500, etc

Part code: 003

Bracket types: A, B, C, D, E, R, F, G, ST, T, TU, H

Pump series: AH(R), HH, L(R), G(H), SP(R), AF

Inquire now

Product Detail

The commonly used materials for slurry pump brackets are HT250 or QT500. The bracket and bearing assembly constitute the pump transmission part. Slurry pump brackets are generally not damaged and are not considered wear parts.

bracket form	A	B	C	D	E	R	F	G	S	T
Allowable supporting power (in Kw)	7.5	15	30	60	120	300	260	600	560	1200
Bracket weight Kg	17	24	45	77.5	154	228	555	1006	546	1156
shaft seal waterI/s	0.15	0.25	0.35	0.55	0.70	0.70	0.70	1.20	1.20	1.60

Slurry pump bracket part code:

Frame Code	AH Slurry Pump	Materials
B003M	1.5/1B-AH, 2/1.5B-AH	HT250, QT500
C003M	3/2C-AH, 4/3C-AH	HT250, QT500
D003M	4/3D-AH, 6/4D-AH	HT250, QT500
E003M	6/4E-AH, 8/6E-AH	HT250, QT500
R003M	8/6R-AH	HT250, QT500
FAM003M	8/6F-AH, 10/8F-AH, 12/10F-AH	HT250, QT500
ST003M	10/8ST-AH, 12/10ST-AH, 14/12ST-AH	HT250, QT500
TU003	16/14TU-AH, 18/16TU-AH, 20/18TU	HT250, QT500
Frame Code	HH Slurry Pump	Materials
C003M	1.5/1C-HH	HT250, QT500
D003M	3/2D-HH	HT250, QT500
E003M	4/3E-HH	HT250, QT500
F003M	6/4F-HH	HT250, QT500
Frame Code	M Slurry Pump	Materials
E003M	10/8E-M	HT250, QT500
R003M	10/8R-M	HT250, QT500
Frame Code	L Slurry Pump	Materials
A003M	20A-L	HT250, QT500
B003M	50B-L	HT250, QT500
C003M	75C-L	HT250, QT500
D003M	100D-L	HT250, QT500
E003M	150E-L	HT250, QT500
S003M	300S-L	HT250, QT500
Frame Code	G(H) Gravel Pump	Materials
D003M	6/4D-G	HT250, QT500
E003M	8/6E-G	HT250, QT500
F003M	10/8F-G	HT250, QT500
S003M	10/8S-G, 10/8S-GH	HT250, QT500
G003M	12/10G-G, 14/12G-G, 12/10G-GH	HT250, QT500
TU003	16/14TU-GH	HT250, QT500
