Slurry pump drive and shafting components

/Slurry pump shaft sleeve_water pump factory shaft sleeve_desulfurization pump shaft sleeve

Slurry pump shaft sleeve_water pump factory shaft sleeve_desulfurization pump shaft sleeve

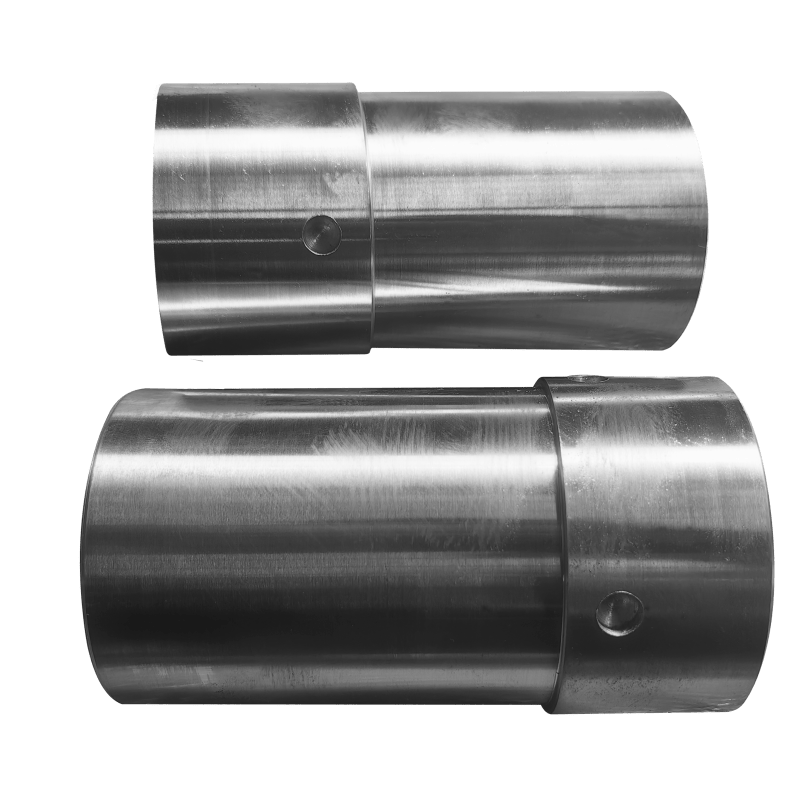

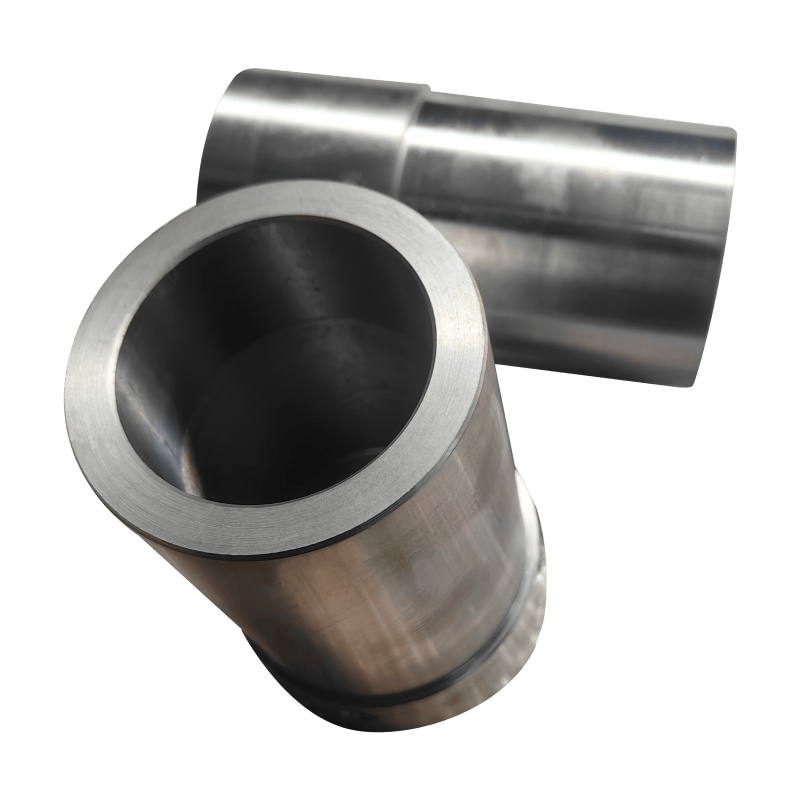

The shaft sleeve of the slurry pump is used at the sealing part and is a vulnerable part. The materials include 3Cr13, 304, 316, ceramic, and other materials. The packing shaft seal assembly includes the packing box, shaft sleeve, locating sleeve, sealing ring, packing, packing pad, water seal ring, and packing gland, among other parts.

Item no.:
CWa13
Product origin:
China
Min order:
9
Lead Time:
7days after payment

Inquire now

Product Detail

The shaft sleeve of the slurry pump is used in the sealing part and is a vulnerable part. The materials include 3Cr13, 304, 316, ceramic, and other materials.

The gland packing assembly comprises various components such as the packing box, shaft sleeve, locating sleeve, sealing ring, packing, packing pad, water seal ring, and packing gland.

Warman pump slurry pump shaft sleeve part code:

Shaft sleeve part code	Slurry pump model	Material of slurry pump shaft sleeve
B075	1.5/1B-AH, 2/1.5B-AH	C21,C23,J04,J05
C075	3/2C-AH, 4/3C-AH	C21,C23,J04,J05
D075	4/3D-AH, 6/4D-AH	C21,C23,J04,J05
E075	6/4E-AH, 8/6E-AH, 8/6R-AH	C21,C23,J04,J05
F075	8/6F-AH	C21,C23,J04,J05
FAM075	10/8F-AH, 12/10F-AH, 14/12F-AH	C21,C23,J04,J05
SH075	10/8ST-AH, 12/10ST-AH, 14/12ST-AH	C21,C23,J04,J05
TH075	16/14TU-AH	C21,C23,J04,J05
TH076	16/14TU-AH	C21,C23,J04,J05
Shaft Sleeve Code	HH Slurry Pump	Shaft Sleeve Materials
CH075	1.5/1C-HH	C21,C23,J04,J05
D075	3/2D-HH	C21,C23,J04,J05
E075	4/3E-HH	C21,C23,J04,J05
F075	6/4F-HH	C21,C23,J04,J05
Shaft Sleeve Code	M Slurry Pump	Shaft Sleeve Materials
E075	10/8E-M	C21,C23,J04,J05
F075	10/8F-M	C21,C23,J04,J05
Shaft Sleeve Code	L Slurry Pump	Shaft Sleeve Materials
A075	20A-L	C21,C23,J04,J05
BSC075	50B-L	C21,C23,J04,J05
C075	75C-L	C21,C23,J04,J05
D075	100D-L	C21,C23,J04,J05
E075	150E-L	C21,C23,J04,J05
S075	300S-L	C21,C23,J04,J05
Shaft Sleeve Code	G(H) Gravel Pump	Shaft Sleeve Materials
D075	6/4D-G	C21,C23,J04,J05
E075	8/6E-G	C21,C23,J04,J05
F075	10/8F-G	C21,C23,J04,J05
G075	12/10G-G, 14/12G-G, 12/10G-GH	C21,C23,J04,J05
TH075	14/12TU-G,16/14TU-G,16/14TU-GH	C21,C23,J04,J05
TH076	14/12TU-G, 16/14TU-G, 16/14TU-GH	C21,C23,J04,J05
