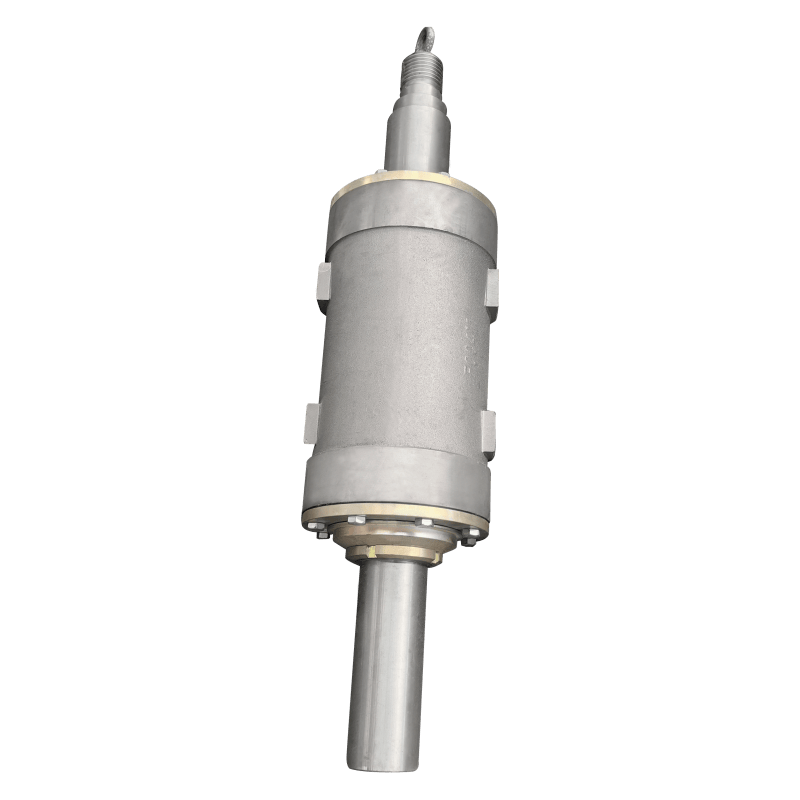

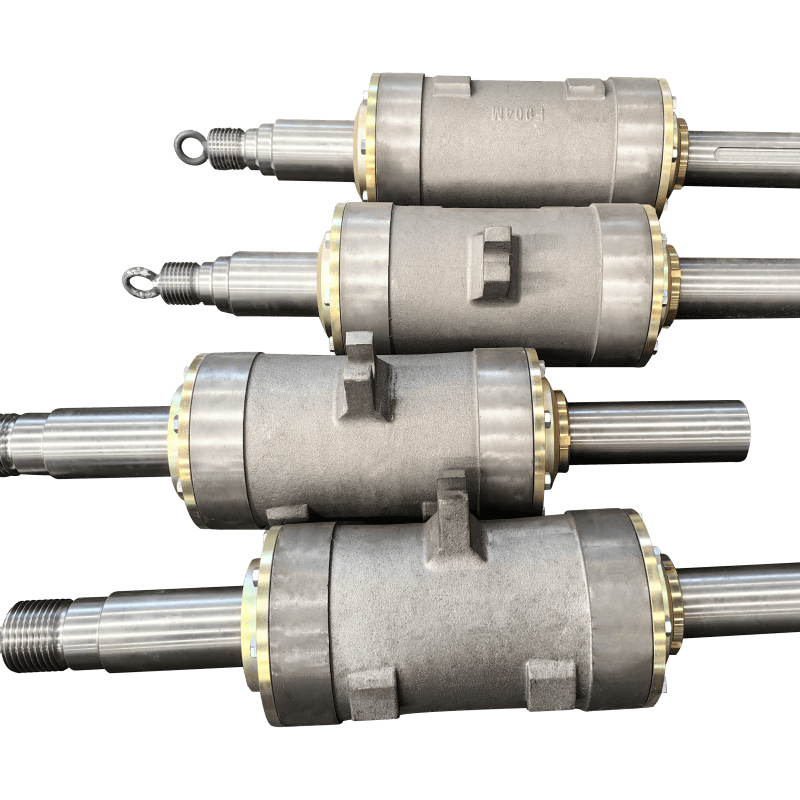

Slurry pump bearing assembly_bearing assembly manufacturer
Slurry pump bearing assembly_bearing assembly manufacturer

Slurry pump bearing assembly_bearing assembly manufacturer

Bearings: ZWZ, SKF, TIMKEN, etc

Axle: 45#

Pump series: AH, HH, L, M, SP(R), G/GH, AF

  • Item no.:

    LDh13

  • Product origin:

    China

  • Min order:

    9

  • Lead Time:

    7days after payment
Inquire now

The bearing assembly of the slurry pump, also known as the rotor assembly, is an important component of the transmission part of the slurry pump. It consists of a shaft, bearings, end caps, labyrinth sleeves, and labyrinth rings.

The basic part number of the slurry pump bearing assembly is 005, and it is the main component that transmits power from the drive end to the impeller. Compared to water pumps, the slurry pump bearing assembly features a larger diameter shaft and a shorter overhang, thereby minimizing deflection and vibration. The standard slurry pump bearing assembly consists of two sets of single-row tapered roller bearings installed face-to-face in a movable bearing housing. The high-capacity bearing assembly includes a set of double-row tapered roller bearings installed near the slurry pump impeller and a set or two sets of cylindrical roller bearings installed near the motor.

It is recommended to use lithium-based grease 2# or 3# for bearing lubrication. The amount of grease to be added during assembly can refer to the following table: Unit: grams

pport type

Lubricating grease quantity

B

C

D

E

F

G

R.RS

S.ST

T.TU

drive end bearing

30

50

100

200

500

1150

200

500

1150

pump end bearing

30

50

100

200

500

1150

400

1000

2300



Basic part number of slurry pump bearing assembly:

Bearing assembly code

Slurry pump model

Optional included bearing

B005M

1.5/1B-AH, 2/1.5B-AH

ZWZ, SKF, TIMKEN Brand

C005M

3/2C-AH, 4/3C-AH

ZWZ, SKF, TIMKEN Brand

D005M

4/3D-AH, 6/4D-AH

ZWZ, SKF, TIMKEN Brand

E005M

6/4E-AH, 8/6E-AH

ZWZ, SKF, TIMKEN Brand

R005M

8/6R-AH

ZWZ, SKF, TIMKEN Brand

FAM005M

8/6F-AH, 10/8F-AH, 12/10F-AH

ZWZ, SKF, TIMKEN Brand

SH005M

10/8ST-AH, 12/10ST-AH, 14/12ST-AH

ZWZ, SKF, TIMKEN Brand

TH005M

16/14TU-AH, 18/16TU-AH, 20/18TU

ZWZ, SKF, TIMKEN Brand

Bearing Assembly

HH Slurry Pump

Slurry Pump Bearing Brand

CAM005M

1.5/1C-HH

ZWZ, SKF, TIMKEN Brand

DAM005M

3/2D-HH

ZWZ, SKF, TIMKEN Brand

EAM005M

4/3E-HH

ZWZ, SKF, TIMKEN Brand

FAM005M

6/4F-HH

ZWZ, SKF, TIMKEN Brand

Bearing Assembly

M Slurry Pump

Slurry Pump Bearing Brand

EAM005M

10/8E-M

ZWZ, SKF, TIMKEN Brand

R005M

10/8R-M

ZWZ, SKF, TIMKEN Brand

Bearing Assembly

L Slurry Pump

Slurry Pump Bearing Brand

ASC005M

20A-L

ZWZ, SKF, TIMKEN Brand

BSC005M

50B-L

ZWZ, SKF, TIMKEN Brand

CAM005M

75C-L

ZWZ, SKF, TIMKEN Brand

DSC005M

100D-L

ZWZ, SKF, TIMKEN Brand

ESC005M

150E-L

ZWZ, SKF, TIMKEN Brand

S005M

300S-L

ZWZ, SKF, TIMKEN Brand

Bearing Assembly

G(H) Gravel Pump

Slurry Pump Bearing Brand

DAM005M

6/4D-G

ZWZ, SKF, TIMKEN Brand

EAM005M

8/6E-G

ZWZ, SKF, TIMKEN Brand

F005M

10/8F-G

ZWZ, SKF, TIMKEN Brand

S005-3M

10/8S-G, 10/8S-GH

ZWZ, SKF, TIMKEN Brand

G005M

12/10G-G, 14/12G-G, 12/10G-GH

ZWZ, SKF, TIMKEN Brand

TH005M

16/14TU-GH

ZWZ, SKF, TIMKEN Brand
